LANScientific Gold Analyzer

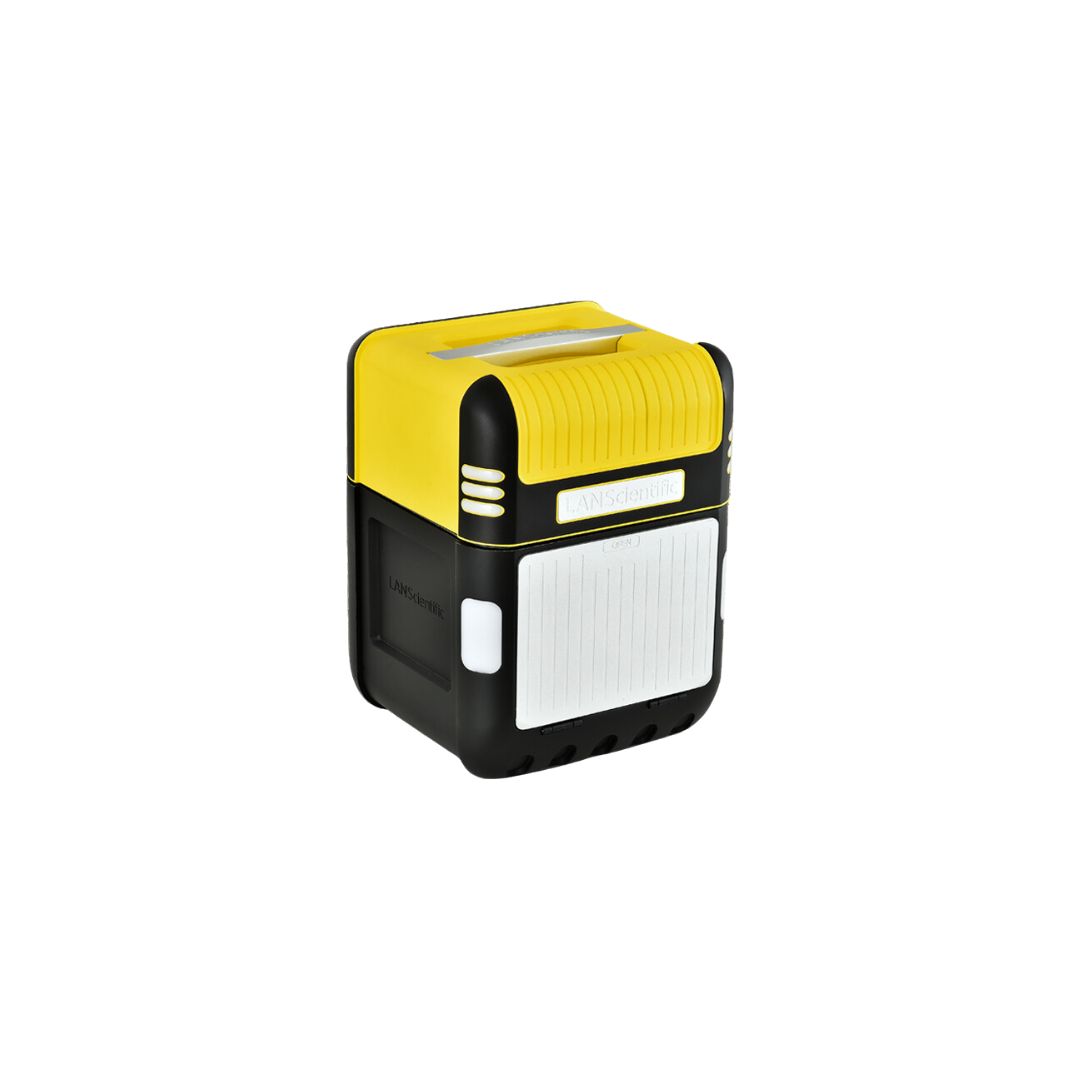

PeDX Gold Analyzer
PeDX is designed an efficient, accurate and intuitive analyzer customized for gold shops and recycling industry. Light solid materials ensure users to carry it easily to any testing sites including jewelry shops, factories and recycling center. Built-in high-performance microprocessor ensures the accuracy of data processing and reliability of test results. PeDX is equipped with HD camera to focus on small samples so that to increase the accuracy of operation. PeDX’s user-friendly operating interface ensures that even non-professionals can learn and use easily for quick on-site analysis, highly improving efficiency. Powerful data management system is convenient for users for follow-up data analysis and management. It’s a good helper for jeweller, recyclers and processing factories in precious metal quality control process.
High accuracy
XRF technology provides reliable purity and composition data with an accuracy up to 0.03%.
Fast analysis
Compared with traditional chemical methods, XRF precious metal analyzer provides results in seconds, greatly improving efficiency.
Data management system
Built-in data management system for users to store, check and export test results.
Portability
Small volume and light weight make it easy to carry and use in various environments.
One-click intelligent operation
The entire analysis process can be done in several seconds. The operation is simple and can be easily mastered by non-technical personnel.
Equipped with Bluetooth printer
Bluetooth printer is equipped for wireless printing. Users only need to click ‘Print’ button to obtain reports and data quickly.
| Weight | 4.6 kg |
|---|---|
| Size | 200 x 200 x 268 mm (LxWxH) |
| Sample Room Size | 170 x 130 x 60 mm (LxWxH) |
| Excitation Source | Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target (Optional) |
| Detector | BOOST Si-pin |
| Detection Range | Al - U |
| Data Processing | Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Safety | Built-in X-ray protection (automatic cut-off) Safety interlock, can only open the instrument under the condition of power (closed performance) Radiation indicator light |
| Accuracy | +/- 0.03% |
| Display | 5.7-inch absorbable color touch screen display |
| Camera | Built-in 5-megapixel HD camera |
| Collimator | Equipped with 1.5mm collimator to reduce background noise, improve resolution and accuracy. |
