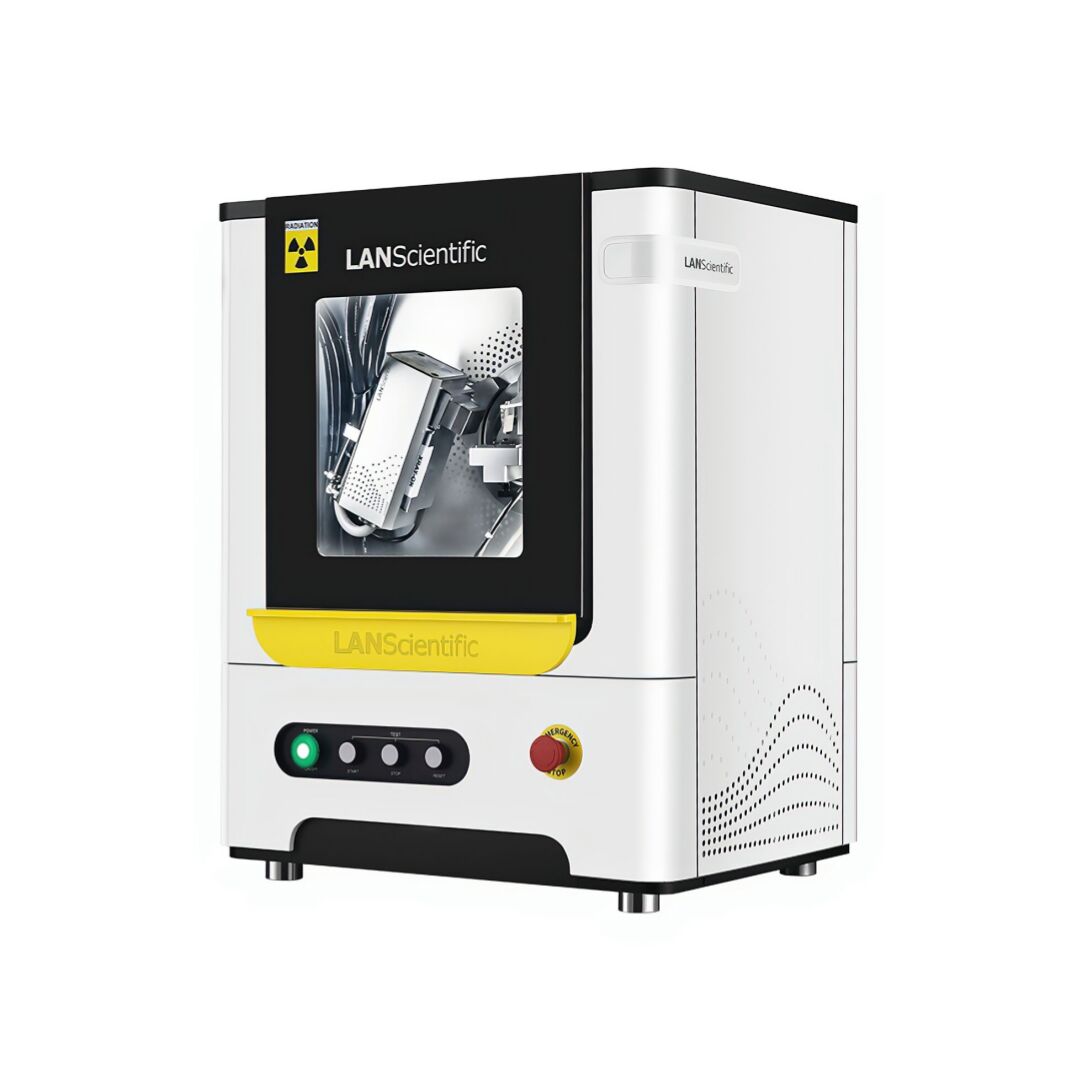

FRINGE Family (Benchtop)

FRINGE CLASS Benchtop X-Ray diffractometer is a desktop X-Ray diffractometer independently developed by LANScientific Co., LTD., which integrates XRD, XRF, computer software and other technologies. It can quickly conduct qualitative and quantitative analysis, crystal structure analysis, material structure analysis and crystallinity determination for powder, block or thin film and other forms of samples. It has the characteristics of high precision, high accuracy, good stability, wide application range, simple operation and intelligence. For materials research, universities and research institutes, building materials, metals, minerals, plastics, pharmaceuticals, semiconductors and many other fields provide high precision analysis.

Description
Additional Information

Air spring large window lift door

Air spring large window lift door not only save desktop space,but also suitable for each desk,and effectively improve space utilization rate.

Built-in water circulation cooling system

FRINGE built-in water circulation cooling system, no need to add additional chiller. Software can real-time display the X-ray tube water temperature, flow, flow rate and other information.

Safety

It has automatic cutting protection device in the test process, safety linkage lock device, the sample chamber is fully enclosed after closing, and the operation interface has the function of closing the sample chamber.

DPPC detector

DPPC detector (digital pulse processing counting detector), counting throughput ? 1×10⁷CPS, DPPC detector can efficiently suppress sample fluorescence, even for strong fluorescent samples. It can also provide excellent peak-to-back ratio, without the use of secondary monochromator. DPPC detector provides energy dispersion spectral data while providing diffraction data.

Integrated sola slits

The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms.

XRD for everyone

After obtaining diffraction data, CrystalX automatically carry out phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, just need to click "start testing", the rest to the CrystalX software.
